If you are a rider who craves punchy off-the-line torque and a smooth, comfortable ride, you’ll want to pay attention to the Hynox Trooper X. Last month, we checked out the standard Trooper, but this time around, we are diving deep into its upgraded, full-suspension sibling. Priced at $1,399, this folding, fat-tire e-bike packs some serious class-leading performance.
Let’s break down the specs, the ride quality, and how it holds up in the real world. Link to buy.
First Impressions & Design

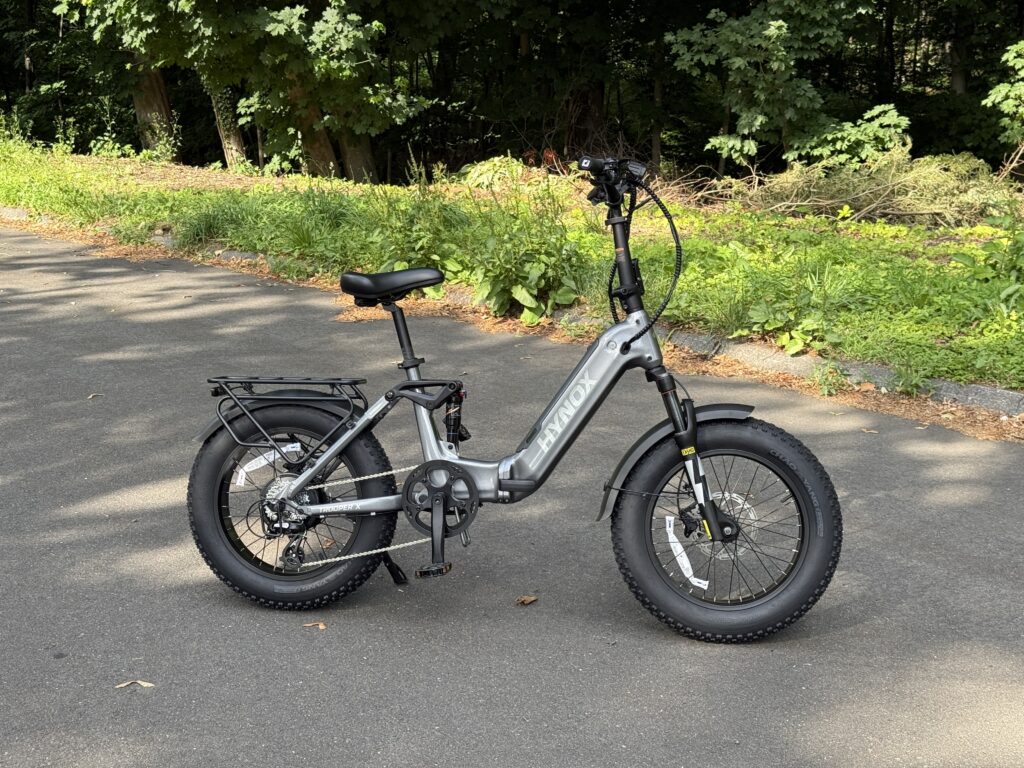

The Hynox Trooper X is a folding, fat-tire e-bike featuring a step-through design. It directly competes with models like the Heybike Ranger 3.0 S, but the Trooper X stands out with its superior design. It features a beefy black mid-linkage system and a DNM air shock that gives it a incredibly clean, premium look.
- Color Options: Available in Red, Blue, or Silver (featured in this review).
- Portability: The bike weighs 77 lbs and folds in half like a taco (dimensions roughly 41x22x29 inches) with a collapsing stem and folding pedals. Just be careful not to pinch the controller cable underneath when locking it up!
- Capacity: Max load capacity is 400 lbs, with the rear rack safely rated for up to 66 lbs.
- Rider Fit: Rated for riders from 5’1″ to 6’5″. At 6 feet tall, raising the seat post offers a comfortable, natural geometry.
Power, Battery, and Real-World Range
The Motor
The heart of this beast is a 750W rear hub motor that peaks at a massive 1,600W and outputs 100 Nm of torque. This is class-leading for this category. Off the line, this bike is incredibly punchy—so punchy that the front wheel will literally pop up if you aren’t leaning forward or adjusting the settings!
Battery & Charging
Mounted on the down tube is a 48V 15Ah battery that features an IPX6 water resistance rating, allowing it to handle heavy downpours and high-pressure sprays. It comes with a 3A charger, getting you from empty to full in about 5 hours.
The Range Reality Check
While the official specs claim up to 65 miles on Pedal Assist 1 and 50 miles on pure throttle, real-world testing tells a different story. Because this high-torque motor pulls so much juice, a 180 lb rider should realistically expect about 20 miles on pure throttle and around 35 miles when pedaling.
Component Breakdown
- Suspension: Up front, you get an XO hydraulic suspension fork with 80mm of travel, mechanical lockout, and preload adjustment. The star of the show is the rear DNM 3-way air shock (165mm x 35mm), which provides 80mm of wheel travel and allows you to custom-pump the air pressure to match your weight.
- Brakes: Stopping power is handled by thick 2.3mm Logan Hydraulic Disc Brakes paired with a 180mm rotor, giving you great, grippy stopping power.
- Gears: It features a 48T chainring up front and a premium 11x32T chrome freewheel in the back, paired with a Shimano Altus derailleur. Because it’s a torque sensor e-bike, this gear setup provides excellent pedal resistance for an authentic workout.
- Cockpit & Lighting: The cockpit features comfortable locking grips, an 8-speed trigger shifter, and a left-side thumb throttle. The color display is bright and shows vital stats like voltage and battery percentage. For safety, it includes a 130 lux adjustable LED headlight (with high and low beams), a working brake light, and integrated turn signals.
On-Road and Off-Road Performance
Speed & Electronics
Out of the box, the throttle will take you right up to around 26.5 to 28 mph once you adjust the display speed settings (P08) to max. Interestingly, the pedal assist seemed capped at 20 mph during testing, which could likely be unlocked further via the smartphone app (though we experienced pairing issues with the app during this review).
The Ride Quality
The motor is on the louder side, but it isn’t overly annoying—and it acts as a built-in warning for pedestrians on the trail. On the road, the bike is incredibly solid with zero frame rattles, even when coasting downhill at 30 mph.
Taking it off-road into the grass and over exposed tree roots is where the dual suspension truly shines. The ride is incredibly plush; the rear air shock keeps you entirely planted in the cushy 8.6-inch memory foam seat without getting jostled around. It handles hills like a champ, climbing steep 10% grades at a steady 13–15 mph with minimal rider effort.
The Verdict: Pros & Cons
Pros
- Insane, class-leading torque and off-the-line power.
- Beautiful, plush dual-suspension system that handles bumps easily.
- High-quality Logan hydraulic brakes and chrome freewheel setup.
- Great price point ($1,399) for full suspension.
Cons
- The 15Ah battery drains quickly under heavy torque.
- The motor is a bit noisy.
- Minor out-of-the-box mechanical quirks (the derailleur needed a minor tuning adjustment to stop the gears from skipping).
- App connectivity can be finicky.
Overall, the Hynox Trooper X is a rugged, incredibly fun, and stylish e-bike that outperforms competitors like the Heybike Ranger in looks and suspension quality. If you want a folding fat-tire bike that doesn’t compromise on comfort or power, this is a fantastic candidate.
Have any questions about the Trooper X? Drop a comment below and let us know what you think!
